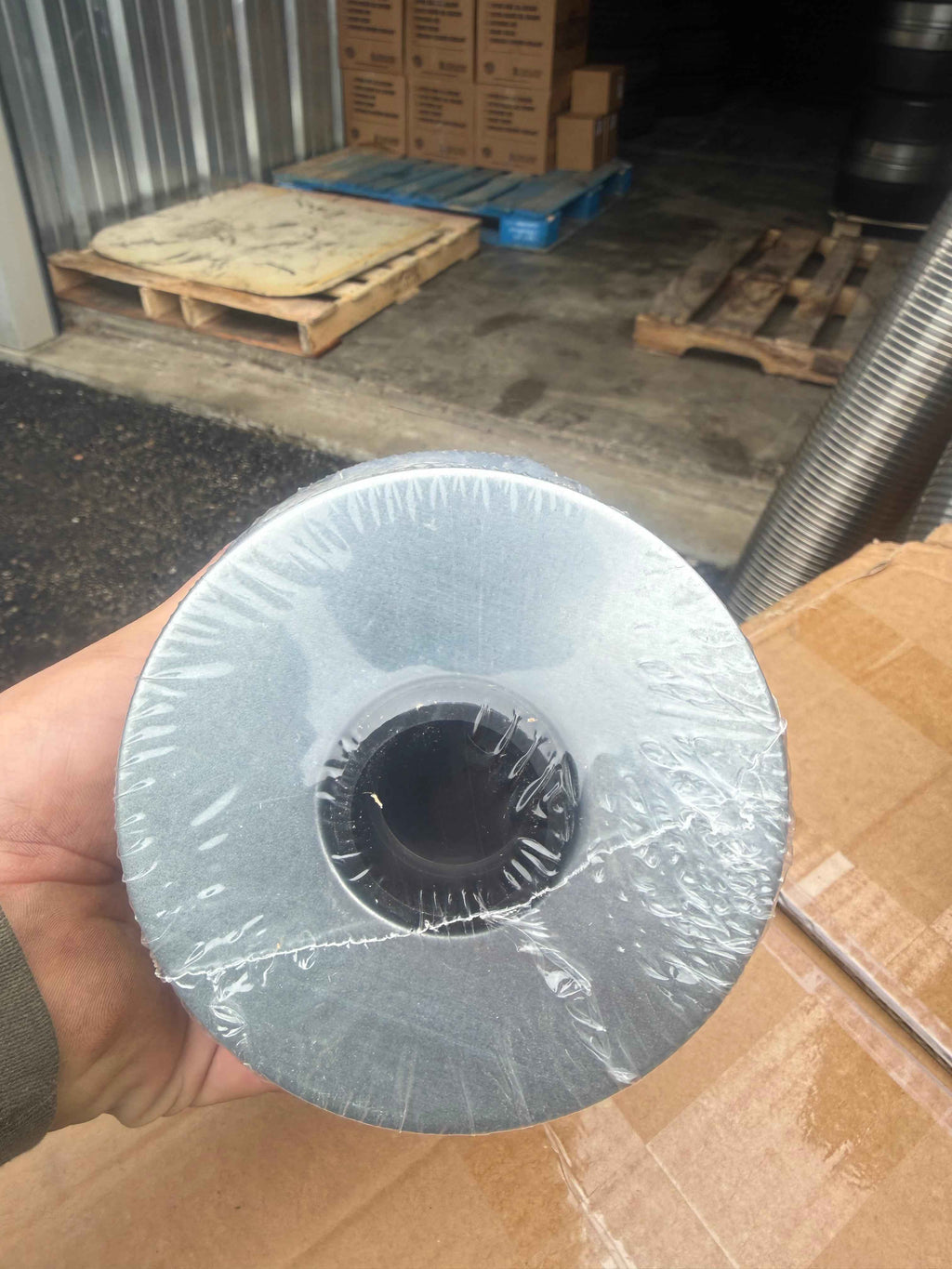

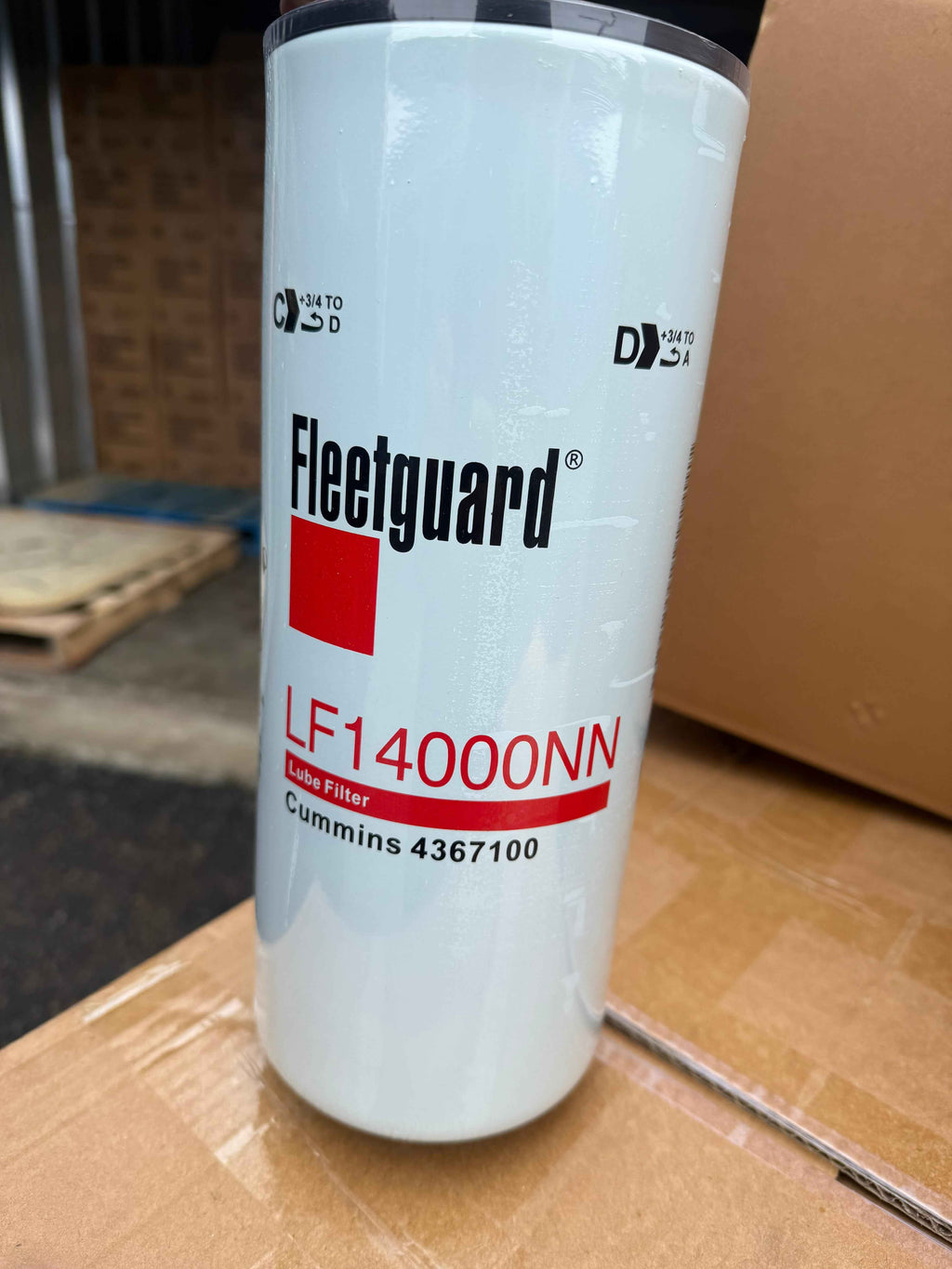

LF14000NN Oil filter
$0.00
Skip to product information
LF14000NN Oil filter
$0.00
A heavy‑duty spin‑on oil filter that keeps your diesel engine oil clean by removing harmful particles and contaminants, helping extend engine life and maintain performance.
| Specification | Details |
|---|---|
| Type | Full‑flow lube oil filter (spin‑on) |
| Media | NanoNet® and StrataPore® synthetic media |
| Filtration Efficiency | ~99 % at 20 µm (nominal) / ~98.7 % at 30 µm |
| Overall Height | ~11.60 in (≈294.7 mm) |
| Outside Diameter (Largest) | ~4.74 in (≈120.3 mm) |
| Gasket Outside Diameter | ~4.74 in (≈120.3 mm) |
| Thread Size | M95 × 2.5‑7H (metric) |
| Thread Diameter | ~3.74 in (≈95 mm) |
| Thread Pitch | 2.5 mm |
| Thread Class/Form | 7H / Metric |
| Dust Holding Capacity | ~100 g (approx.) |
| Rated Flow | ~27.7 gal/min (≈105 L/min) |
| Standpipe / BPV | No standpipe / no bypass valve setting (full‑efficiency design) |
| Cross‑References | Replaces older LF9080 / LF9001; fits many Cummins engine part numbers (e.g., 4367100) |
