Brake Pads GBC 4707
$79.99

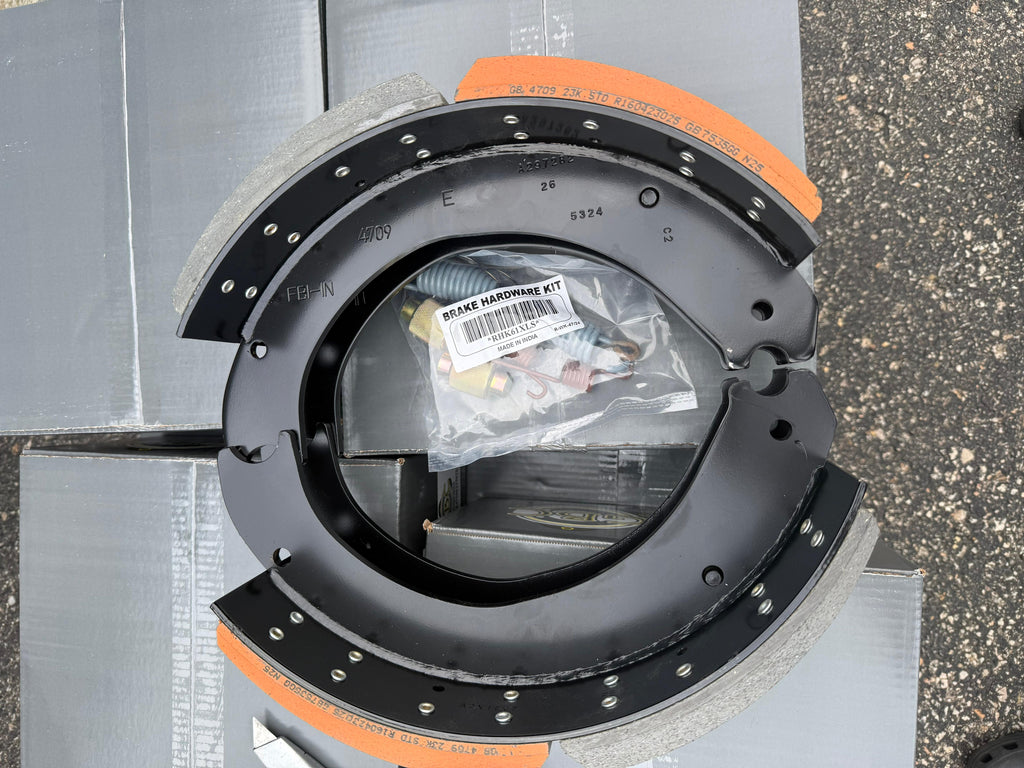

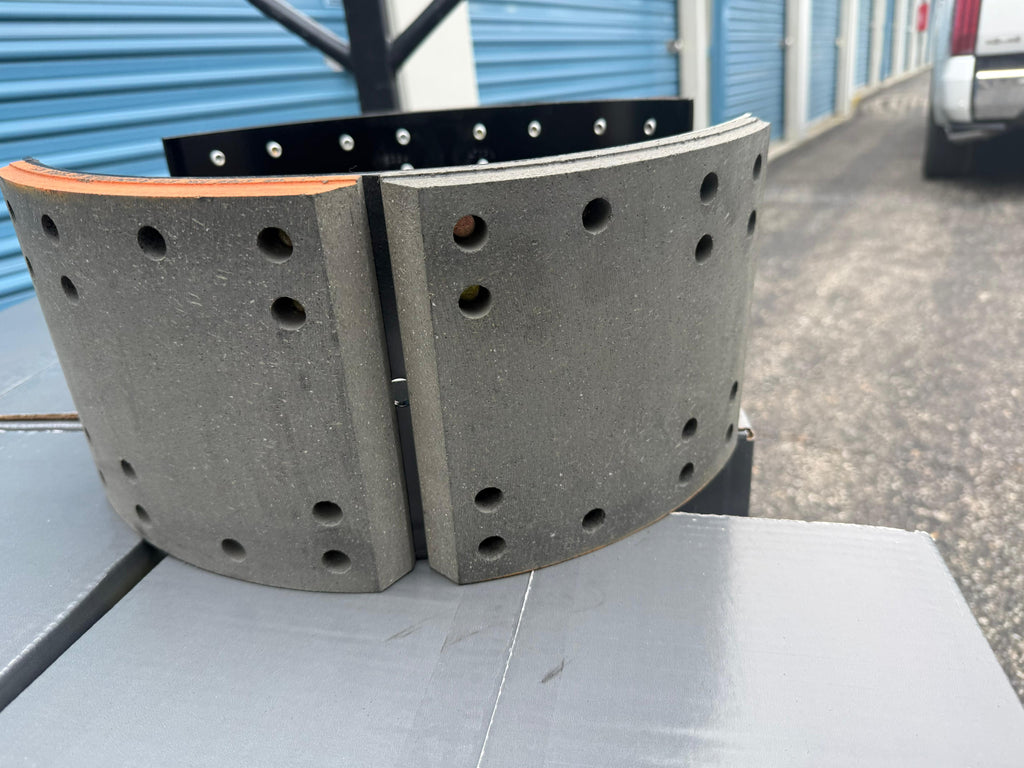

The Brake Pads GBC 4707 are heavy-duty brake shoes designed for commercial truck drum brake systems, commonly used in Class 6–8 vehicles such as semi-trucks, tractors, and trailers. They use the FMSI 4707 standard size, which means they are built to fit a wide range of air brake drum assemblies with a 16.5 inch x 7 inch brake shoe dimension. This is one of the most common configurations in North American heavy-duty trucking applications.
| Specification | Details |
|---|---|
| Part Type | Heavy-duty brake shoes (drum brake) |
| FMSI Number | 4707 |
| Application Type | Commercial truck / trailer drum brakes |
| Brake Size | 16.5 in x 7 in (419 x 178 mm) |
| Brake System | S-Cam air brake system |
| Axle Position | Drive axle / trailer axle (varies by setup) |
| Drum Compatibility | 16.5-inch internal diameter drum |
| Friction Material | Semi-metallic or composite (varies by manufacturer) |
| Lining Grade | Typically 20K–25K heavy-duty ratings |
| Load Rating | Up to ~23,000–25,000 lbs depending on version |
| Rivet Pattern | Multi-rivet (varies by supplier) |
| Heat Resistance | High thermal stability for heavy braking cycles |
| Typical Lifespan | ~30,000–70,000 miles (usage dependent) |
| Vehicle Compatibility | Freightliner, Volvo, Kenworth, Mack, Peterbilt trailers & trucks |
| Service Type | Replacement / relined or new shoe assemblies |
